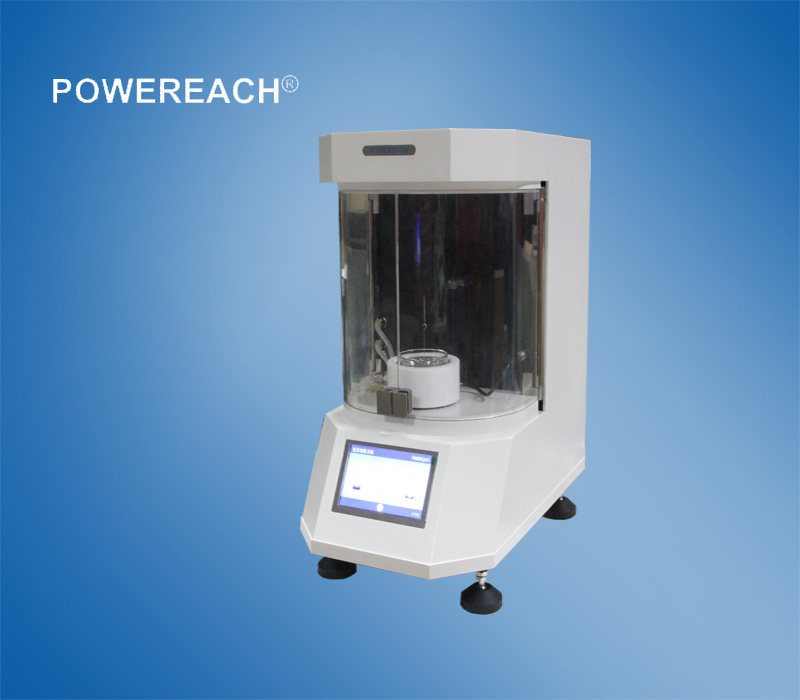

Brief introduction of JK99 Series Automatic Tension Meter
As a simple and practicable test instrument replacing the chemical method with physical method, JK99 Series Automatic Tension Meter adopts platinum plate method and platinum ring method, has such functions as one-key automatic zero setting and one-key automatic measurement, and is intended for rapid and accurate measurement of surface tension of various liquids and interface tension between different liquids.
Main models of JK99 Series Automatic Tension Meter (table 1)
|
Model |
JK99B |
JK99C |
JK99D |
JK99F |
JK99M |
|
Price (Yuan/set) |
32500. |
36500. |
At least 49800 |
26500. |
52800. |
|
Sensor |
Sensor imported from Japan |
Sensor imported from Japan |
Sensor imported from Japan |
Home-made quality sensor |
Mettler quality sensor |
|
Measurement range（mN/m） |
0～500 |
0～500 |
0～500 |
0～1000 |
0～1000 |
|
Touch LCD screen |
Not included |
Including/off-line operation |
Optional |
Including/off-line operation |
Optional |
|
Computer connection operation |
Available |
Available |
Available |
Not available |
Available |
|
Roll-type printer |
Not included |
Included |
Optional |
Not included |
Optional |
|
Instrument enclosure |
ABS with fine grained process |
ABS with fine grained process |
Stainless steel |
ABS with fine grained process |
ABS with fine grained process and mirror stainless steel |
|
Magnetic stirring |
Not included |
Not included |
Included |
Not included |
Included |
|
Temperature control (thermostatic bath is optional or configured by the user) |
The standard configuration is circulation thermal insulation platform capable of connecting to thermostatic bath and the electronic temperature control is optional. |
The standard configuration is circulation thermal insulation platform capable of connecting to thermostatic bath and the electronic temperature control is optional. |
The standard configuration is circulation thermal insulation platform capable of connecting to thermostatic bath and the electronic temperature control is optional. |
Temperature control not included |
The standard configuration is circulation thermal insulation platform capable of connecting to thermostatic bath and the electronic temperature control is optional. |
|
Expansion of other optional components |
Only computer and electronic temperature control are optional and neither of other components is optional. |
Only computer and electronic temperature control are optional and neither of other components is optional. |
Only CMC, LCD screen, printer, computer and electronic temperature control are optional and neither of other components is optional. |
Not optional |
All components can be expanded, including sedimentation analysis, dynamic bubble, contact angle measurement and density measurement. |
Common features of JK99 Series Automatic Tension Meter
1.Quality sensor, accurate test data, high precision, good repeatability and long service life.
2. Platinum ring method/platinum plate method is used for determining surface tension and interface tension changing with time and concentration.
3. JK99B/JK99C/JK99D Automatic Tension Meter is available on Windows operation interface and has such functions as long-time operation, curve recording and storage and printing.
4. Exquisite structural design, stable operation of platform, low noise.
5. Standard configuration includes a set of sensor check ring weight, which is featured by rapid and convenient instrument calibration, accurate data and conformity with internal control requirements of user’s quality management system.
6. The instrument provides manual reset and software one-key reset and the user can set up intermittent automatic reset function as required.
7. According to actual demands of customer and that in teaching process, the step-by-step measurement is needed and the hardware and software have the function of forced lifting and lowering platforms.
8. It meets the requirements of national standards GBT 22237-2008, GBT 5549-2010 and GBT 6541-86 and is compatible with platinum ring method to facilitate the contrast between user data and different industrial standards.
9. The platinum plate and platinum ring in instrument can measure the surface tension of various liquids and interface tension between different liquids.
10. The instrument software has built-in calculation and correction formula, needs neither tedious operation nor calculation, obtains data results with one-key automatically, and thus eliminating personal error.
11. JK99F (standard configuration)/JK99C(standard configuration)/JK99D (optional)/has built-in touch LCD screen for easy operation and display and includes roll-type printer, so that automatic tension meter can operate independently and move conveniently; one-key touch operation and real-time display, output and print of measurement result, and there is no need to connect computer and printer.
12. JK99B/JK99C/JK99D Automatic Tension Meter can connect with a computer for operation (including application software) and conduct automatic recording of tension change curve, real-time result output, observation and recording.
13. JK99B/JK99C/JK99D Automatic Tension Meter is configured with circulation thermal insulation platform capable of connecting to thermostatic bath and has built-in temperature sensor. The user can connect it with a variety of thermostatic baths easily (standard configuration of the instrument does not include thermostatic bath, so the user may use the original thermostatic bath or require the Company to configure it). Electronic temperature control is optional.
14. The instrument is applicable to measurement of liquid with medium-high viscosity, achieving surface tension test in printing ink, oil paint and petroleum industries.
15. Continuous quality service is ensured depending on complete proprietary intellectual property rights. The Company’s technical and after-sales personnel will serve you wholeheartedly.
Common parameters of JK99 Series Automatic Tension Meter
1. Measurement range: 0mN/M～500mN/M
（The measurement range of JK99F and JK99M Automatic Tension Meters are 0mN/M～1000mN/m）
2. Sensitivity: 0.01 mN/m
3. Precision: 0.01 mN/m
4. Resolution: 0.01 mN/m
5. Detection mode (two methods are compatible):
a. Platinum ring method (sample amount for a single measurement is 40~50ml)
b. Platinum plate method (sample amount for a single measurement is 20~30ml)
6. Sampling period: Platinum ring method (150-200S)
Platinum plate method（1-5S）
7. Voltage source: AC220±5V
8. Maximum power consumption: <150W
9. Temperature reading precision: 0.1℃ (measure it with sensitive temperature sensor), 30%~85% relative humidity
Standard configuration of JK99 Series Automatic Tension Meter
1. Platinum plate one for standard configuration（RMB 2150 Yuan for each another one if required）
2. Platinum ring one for standard configuration（RMB 2150 Yuan for each another one if required）
3. Serial port extension line 1
4. Crystallizing dish 2
5. Alcohol lamp 1
6. Built-in touch LCD screen 1 set（for JK99C andJK99F only）
7. Roll-type printer 1 set（for JK99C only）
8. Application software and operation manual in electronic form 1 set
9. Operation manual in paper form 1 piece
10. Circulation thermal insulation platform capable of connecting to thermostatic bath 1 set（for JK99B, JK99C, JK99D and JK99M only）
11. Check ring weight 1 set
12. Level ruler 1
13. Tweezers 1
14. All stainless steel case 1 set（for JK99D only）
15. Magnetic stirring 1 set（for JK99D and JK99M only）
Price of optional components of JK99 Series Automatic Tension Meter:
1. Built-in touch LCD screen and roll-type printer: RMB 4000 Yuan（for JK99D and JK99M only）
2. CMC measurement function（see Figure 1）: RMB 30000 Yuan（for JK99D and JK99M only）
3. CMC automatic defoaming function: RMB 35000 Yuan（for JK99D and JK99M only）
4. Dynamic bubble tension function: 0～20 bubbles/s RMB 30000 Yuan（for JK99M only）
0～66 bubbles/s RMB 50000 Yuan（forJK99M only）
5、one hundred thousandth balance function RMB 100000 Yuan（forJK99M only）
6、Adhesive force measurement function RMB 30000 Yuan（forJK99M only） .
7. Powder contact angle function: RMB 18000 Yuan（for JK99M only）
8. Density measurement function: RMB 8000 Yuan（for JK99M only）
9. Sedimentation analysis function: RMB 28000 Yuan（for JK99M only）
10. Dynamic contact angle function: RMB 7000 Yuan（for JK99M only）
11. External temperature measurement function RMB 2000 Yuan（for JK99M only）
12. Extra purchase of platinum plate: RMB 2150 Yuan（for all types）
13. Extra purchase of Platinum ring: RMB 2150 Yuan（for all types）
14. Platinum plate/ring old for new service（depending on whether platinum section is damaged）, RMB 300～2000 Yuan（for all types）
15. Optional computer（three-year door-to-door warranty is provided for factory brand computer）, RMB 4000 Yuan（for JK99B, JK99C, JK99D and JK99M only）
16. Thermostatic bath: Pricing depending on user’s requirements for temperature（for JK99B, JK99C, JK99D and JK99M only）
Figure 1 CMC measurement function
Product and Service of JK99 Series Automatic Tension Meter: The price in Table 1 is exclusive of computer and inclusive of instrument, experiment operation software, standard components, free home delivery, installation, debugging and training (door-to-door service fee will be charged for individual remote regions in mainland areas and other countries outside in mainland areas), and one-year warranty service, tax-inclusive.
Supporting computer of JK99 Series Automatic Tension Meter
JK99B, JK99C, JK99D and JK99M automatic tension meters can connect with the computer for use. If the supporting computer is offered by the supplier, additional RMB 4000 Yuan/set shall be paid and three-year door-to-door warranty is provided for factory brand computer. If the user configure a computer or use original computer, it shall meet the following requirements: WinXP operating system or Win7/10 operating system, a USB interface and a null COM interface (RS232 serial port). Notebook, desktop computer or all-in-one machine can be used.
