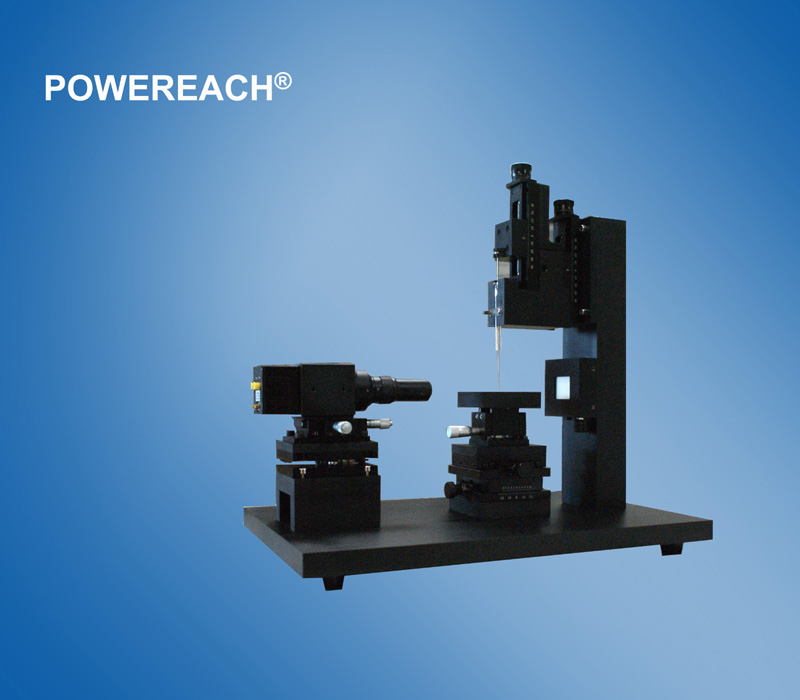

JC2000D1 Contact Angle Meter
As is well known that nanometer material science and engineering has become global research hotspot and in most cases the concept of wetting contact angle will be involved when the surface modification of nanometer material is researched. The so-called contact angle means the included angle between two tangent lines of gas-liquid interface and solid-liquid interface at the intersection of solid-liquid-gas phases on solid surface after a liquid drop is dropped on a solid horizontal plane.
JC2000D1 Contact Angle Meter is mainly used for measuring the contact angle between liquid and solid, i.e., the liquid’s wetting property with regard to a solid, and it can also be used for measuring the contact angle whose external phase is liquid. The Meter can be used for measuring the contact angle between various liquids and materials, such as bulk material, fiber material, textile material and so forth, and even powder sample after tabletting. In addition, the series of meters can be used for measuring and calculating surface/interface tension, CMC, liquid drop shape and dimension, surface free energy and so forth.
Standard configuration of JC2000D1 Contact Angle Meter
1. usb digital CCD camera 1
2. Continuous zooming optical system 1
3. Manual controllable knob sample injection system 1
4. Manual CCD inclination platform 1
5. Application software of image analysis and measurement system 1
6. Operating instruction and operation manual in electronic form 1
7. 50 μL sample injector 1
8. 100 μL sample injector 1
9. Disposable sample injector 2
JC2000D1 Contact Angle Meter System Parameters
1. Measurement range of contact angle: 0~180°
2. Measurement resolution of contact angle: 0.01 °
3. Measurement range of surface tension(pendant-drop method): 0～2000mN/m
4. Sample stage control
a)Forward and backward movement, manual, stroke: 50mm, precision: 0.1mm
b)Left and right movement, manual, stroke: 50mm, precision: 0.1mm
c)Upward and downward movement, manual, stroke: 45mm, precision: 0.1mm
d)Horizontal adjustment: adjust stage levelness through leveling leg
e)Sample stage size:70mm×100mm, sample size(L×W×H)≤100mm×∞×25mm
f) Temperature: room temperature; temperature control system is optional component.
5. Sample injector control
a)Upward and downward movement, manual part: Rack, stroke: 25mm, precision: 0.1mm
b) Manual controllable knob sample injection system
6. CCD optical system
a) Optical enlargement 0.7－4.5×continuous zooming(zooming parameters only, built-in rear magnifying lens)image magnification: 50－318piexl/mm
b)CCD parameter, USB2.0 system 700 line industry CCD 30～300 frame/second(CCD with higher rate is optional)
7. Background light control
a) Light source: LED adjustable monochromatic cold light source
b) Forward and backward adjustment of lens, manual, stroke: 10mm, precision: 0.1mm
c) Upward and downward adjustment of lens, manual, stroke: 10mm, precision: 0.1mm
d) Lens overlook adjustment, manual inclination platform
8. POWEREACH®2.0 version special software for Contact Angle Meter
a) Measurement mode: Half-angle measurement method, half-angle height measurement method, automatic measurement method (circle fitting, ellipse fitting and Young-Laplace) and five-point fitting method
b)Dynamic video measurement, automatic trigger and video speed: 30～300 frame/second
c) Intermittent saving, user-defined interval time of 1～3600s
d) Dynamic contact angle, receding angle and advancing angle, if the rolling angle measurement is required, the rotating platform or overall rotating mechanism shall be configured.
e) Comparison of left and right angles, calculate left and right angles and average the results
f) Liquid drop volume control, software control, precision: 0.1 μL ( automatic precise sample injection device shall be configured)
g) Surface free energy: ziman one-liquid method, EOS balance method, owens two-liquid method, Wutwo-liquid method, louis acid-base three-liquid method and many other methods are optional.
h) Adjustment of the curved surface, male and female contact angle measurement
i) Software upgrade: free lifetime upgrade
9、Instrument overall structure includes seven-dimensional movement adjustment model
10、Modular design, extended pattern: Application components of JC2000D series of products can be extended no matter at pre-sales or in many years after sales.
11、In the measurement process, shared monitoring, programmable measurement process and cloud storage of measurement data (optional) can be realized.
Tax-inclusive price of JC2000D1 Contact Angle Meter: RMB 49800.00, exclusive of supporting computer and inclusive of instrument, experiment operation software, necessary components listed in the contract, free home delivery, installation, debugging and training in main regions in mainland areas (door-to-door service fee will be charged for individual remote cities), and one-year warranty service.
Supporting computer of JC2000D1 Contact Angle Meter:
JC2000D1 Contact Angle Meter may operate only if the supporting computer is configured. If the supporting computer is offered by the supplier, additional RMB 4000 Yuan/set shall be paid and three-year door-to-door warranty is provided for factory brand computer. If the user configure a computer or use original computer, it shall meet the following requirements: WinXP operating system or Win7/10 operating system, and a null USB interface. Notebook, desktop computer or all-in-one machine can be used.
In conclusion: JC2000D covers a series of products, among which the standard type of JC2000D (JC2000D1) has complete and powerful functions, which mainly include:
1. Measurement object: Contact angle between liquid and solid, solid surface free energy and liquid surface tension (pendant-drop method)
2. Measurement mode: Instant freeze image, automatic continuous shooting(interval: 1s～3600s) and high-speed shooting(30~300 frames/s)
3. Powerful software: Measurable on plane/male and female measurement, multi-point curve fitting, and static contact angle/ advancing angle/receding angle.
If the afore-said functions can meet all your needs, you need not to read the contents below, and thank you for your patience in reading to here!
Extension component of JC2000D1 Contact Angle Meter
As a common instrument in universities and colleges, research institutes and manufacturing enterprises, Contact Angle Meter has various models corresponding to users’ different test conditions, objects and requirements, so the users are difficult to select it. Most enterprises develop high, middle and low models based on different prices, which incorporate various additional functions, so the users have to accept unnecessary components to obtain their desired function components.
Shanghai Zhongchen Digital Technology Equipment Co., Ltd develop JC2000D Series of Contact Angle Meters with initial “menu type” model selection method, modular design and excellent expansibility. The standard type of JC2000D1 Contact Angle Meter has quite complete fundamental functions and users can add additional functions by ticking “order dishes” in 22 optional components no matter at pre-sales or after sales.
For example, if a user adopted standard type of JC2000D1 Contact Angle Meter intended for measurement at room temperature and normal pressure at first, and after two years, it needs to test the samples needing high-temperature conditions, such as crude oil and resin, and then it may add 200℃ or 400℃ temperature control component without the need of purchasing/replacing a new instrument.
Optional components of JC2000D Series of Contact Angle Meter:
1. Standard type of JC2000D Series of Contact Angle Meter（JC2000D1）: RMB 49,800 Yuan
2. Automatic precise sample injection (software control, precision: 0.1μL, minimum precision: 7 nL), additional RMB 14000 Yuan is required
3. Imported high-speed CCD――100~700 frame/second (high-speed collection software imported from Canada), additional RMB 13000 Yuan is required
Imported high-speed CCD――200~1000 frame/second (high-speed collection software imported from Canada), additional RMB 38000 Yuan is required
Homemade high-speed CCD ――120~2000frame/second (3 megapixel), additional RMB 8000 Yuan is required
4. High-precision automatic sample injection pump (software control, precision: 0.01μL, minimum precision: 7 nL, it cannot be selected together with item 2)
Additional RMB 32000 Yuan is required
5. Manual 360° vertical rotating sample platform (rolling angle can be measured), additional RMB 8080 Yuan is required
6. Manual and automatic 360° vertical rotating sample platform (rolling angle can be measured), additional RMB 11000 Yuan is required
7. Manual 360° horizontal rotating sample platform, additional RMB 5800 Yuan is required.
8. Manual vertical arc swinging sample platform(±15°), additional RMB 4800 Yuan is required.
9. Overall rotating mechanism, additional RMB 12000 Yuan is required
10. Manual and automatic overall rotating mechanism, additional RMB 15000 Yuan is required
11. Temperature control platform module: Japan Omron temperature controller controllable heating platform is used, room tempeature~200℃(RMB 9,800)，
Japan Omron temperature controller controllable heating platform is used, room tempeature~400℃(RMB 11,800)
Japan Omron temperature controller controllable heating and sample squeezing platform is used, room tempeature~200℃(RMB 10,800)
Japan Omron temperature controller controllable heating and sample squeezing platform is used, room tempeature~400℃(RMB 12,800)
The platform of super thermostatic bath (including) temperature control mode is used, -5~100℃（RMB11,800）
The platform of super thermostatic bath (including) temperature control mode is used, -20~100℃（RMB12,800）
The platform of super thermostatic bath (including) temperature control mode is used, -60~100℃（RMB48,800）
12. Liquid-liquid-solid contact angle measuring cell, additional RMB 4000 Yuan is required.
13. Poling board method and captive bubble method fittings, additional RMB 4000 Yuan is required.
14. Electric X and Y platforms, additional RMB 22000 Yuan is required.
15. All-electric 3-D platform (X and Y platforms and focusing), additional RMB 35000 Yuan is required
16. Advanced zoom optical system (imported from Japan, continuous zooming), additional RMB 20000 Yuan is required
17. 50ul/100ul trace sample injector, disposable trace sample injector and fixture (measurement of super-hydrophobic contact angle) are optional, additional RMB 1200 Yuan is required
18. Fabric trampoline, additional RMB 3000 Yuan is required
19. Special bracket for fabric measurement, additional RMB 1000 Yuan is required
20. Peristaltic pump (second sample injection device), additional RMB 1800 Yuan is required
21. Automatic measurement software for contact angle through image analysis, free of charge
22. HY-12 infrared tablet machine，with tabletting mould (easy to demould )，additional RMB 6800Yuan is required
23. HY-12 infrared tablet machine，with tabletting mould (easy to demould and including vacuum pump)，additional RMB 8500Yuan is required
24. Optical angle meter calibration tool without third party test report, additional RMB 800 Yuan is required
Optical angle meter calibration tool with third party test report, additional RMB 3000 Yuan is required
